Description

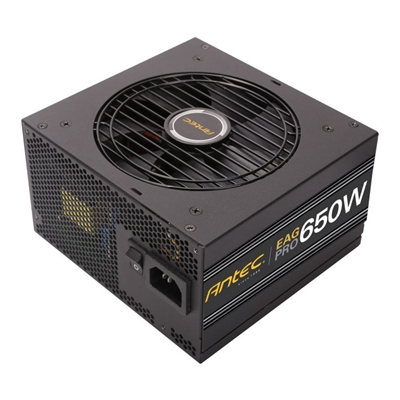

EARTHWATTS GOLD PRO 650W
The EarthWatts Gold Pro series features high performance with an 80 PLUS Gold rating, delivering up to 92% efficiency and reducing your electricity bill. Featuring hybrid modular cabling, a whisper-quiet 120mm fan controlled by Antec’s renowned Thermal Manager, and CircuitShield Industrial Grade protection-all backed by our seven year Antec Quality warranty, the EarthWatts Gold Pro series is the power supply builders choose for a stable, quiet and efficient system.
Key Features
– 650W Continuous Power – Guaranteed 650W of Continuous Power from Antec
– 80 PLUS Gold certified – Up to 92% efficient to reduce your electricity bill
– AQ7 – Antec Quality 7 year warranty and lifetime global 24/7 support
– 120mm Silence: Whisper-quiet high-quality fan with long lifetime
– Semi-modular cable management: Improves airflow and reduces clutter
– 99% +12V output for maximum CPU & GPU support
– Japanese Heavy-Duty Caps: High-performance capacitors ensure DC stability and regulation
– 4 x PCI-E connectors for multiple GPU support
– ATX12V 2.4: Engineered according to the newest PSU guideline and compatible with the latest CPU generation
– PhaseWave Design: A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
– ErP Lot 6 2016 compliant to the toughest energy standard available
– CircuitShield: Full suite of industrial grade protections.
Model
EA650G Pro
Wattage
650W
Type
ATX 12V 2.4
Modular
Semi Modular
Input Voltage
100-240 VAC
Input Current
9A-4.5A
Input Frequency
50Hz-60Hz
PFC
Active PFC (>0.9 typical)
Power Good Signal
100-500ms
Efficiency
92% Typically
Certification
80 PLUS Gold Certified
Protection
OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
Cooling
120mm Silence Fan
Connections
1 x 24-pin MBU (600mm)
1 x 4+4 pin CPU (650mm)
4 x 6+2 pin PEG (650mm + 150mm)
6 x SATA
3 x Molex
Regulatory
cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC
Dimensions ( W x H x D )
140 x 86 x 150mm
Weight
Net: 2.07KGs
Gross: 3.05KGs
