Description

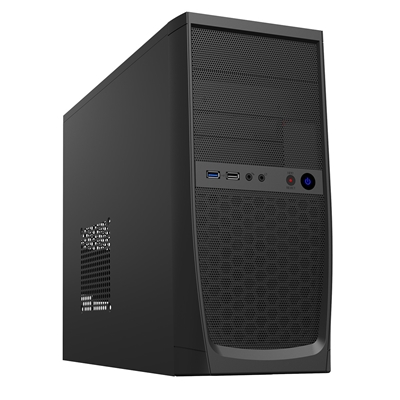

The CiT elite is a budget focused Micro-ATX chassis aimed at business and home office solutions. The Elite is one of the best air cooling solutions with a full mesh front panel for a professional look and is equipped with a USB3 port on the front of the I/O panel. The Elite also includes a rear 80mm fan.

The Elite is an ideal choice for anyone looking to build an office or home based PC on a budget.

– Full mesh front panel with 1 x USB 3.0
– Black chassis with 80mm rear cooling fan included
– Micro ATX chassis with a simple design
– Intel Approved TAC2.0 thermal chassis
– Black coated interior

PSU Specifications
Max PSU Rail Output
+3.3V: 15A
+5V: 15A
+12V: 30A
-12V: 0.5A
+5VSB: 2.5A

PSU Connectors
20 + 4pin ATX Mainboard: 1
4pin +12V CPU: 1
SATA: 3
4pin Molex: 2
FDD: 1

Case Specifications
Form Factor
Micro Tower

Motherboard Support
Micro ATX
Mini-ITX

PSU Support
Standard ATX

PSU Location
Top

Body Material
0.5mm SPCC

Front Bezel Material
Mesh

Side Panel
Vented

Internal Cable Management Depth
21mm

Drive Bays
2 x 5.25″ External
2 x 3.5″ External
3 x 3.5″ Internal
2 x 2.5″ Internal

Drive Bay Notes
External Bays include 2 x 5.25″ Bays & 2 x 3.5″ Bays

Expansion Slots
4 x Full Size

Cooling
Front: None
Top: None
Rear: 1 x 80mm Fan (1 x 80mm Fan Inc.)
Side: None
Bottom: None

IO Ports
1 x USB 3.0
1 x USB 2.0
1 x HD Audio

GPU Max Length
330mm

CPU Cooler Maximum Height
160mm

Front Bezel Colour
Black

Body Colour
Black

PSU Included
Yes

Dimensions ( W x H x D )
173 x 370 x 417 mm

Weight
4.1kg
