Description

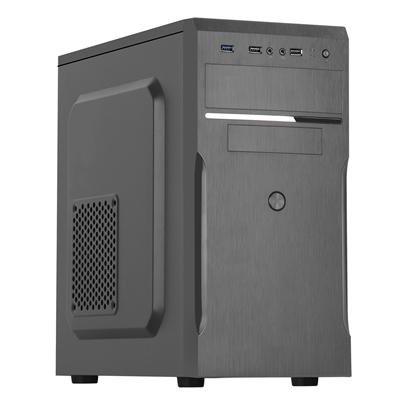

Micro-ATX, wiredrawing front panel, standard with USB3.0 x1 + USB2.0 x2 for superspeed Connecting of data transferring. Features a luxurious black colour, including the interior, and outstanding design. Comes with 1x 80mm fan on the rear which provides better cooling performance. Supports ATX power supply and Micro-ATX Motherboard

Front panel – Micro-ATX , wiredrawing front panel
I/O Port – Standard with USB3.0 x1 + USB2.0 x2 for superspeed Connecting of data transferring
Chassis – Features a luxurious black colour, including the interior, and outstanding design.
Cooling – with 1x 80mm fan on the rear, which provides better cooling performance
Power supply – Supports ATX power supply
Motherboard – Supports Micro-ATX Motherboard

PSU Specifications
PSU Rail Output Max:
+3.3V: 15A
+5V: 15A
+12V: 30A
-12V: 0.5A
+5VSB: 2.5A

Connections:
20 + 4pin ATX Mainboard: 1
4pin +12V CPU: 1
SATA: 3
4pin Molex: 1
IDE: 2
FDD: 1

Case Specifications
Form Factor
Micro Tower

Motherboard Support
Micro ATX
Mini-ITX

PSU Included
Yes

PSU Support
Standard ATX

Body Material
0.45 SPCC BLACK

Front Bezel Material
Plastic

Side Panel
Vented

Drive Bays
1 x 5.25″ External
1 x 3.5″ External
3 x 3.5″ Internal
5 x 2.5″ Internal
(3 x 2.5″ uses same bays as 3.5″, 1 x 5.25″ Behind USB)

Expansion Slots
4 x Full Size

Cooling
Front: Space for 1 x 80 or 120mm
Top: None
Rear: 1 x 8cm Fan (Included)
Side: Space for 1 x 12cm Fan (Not Included)
Bottom: None

I/O Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio
1 x Microphone

Front Bezel Colour
Black

Body Colour
Black

Dimensions ( W x H x D )
188 x 374 x 359 mm
