Description

– Front mesh design provides superior ventilation to maintain constant cooling
– Front I/O panel provides easy access for users
– Side panel security lock hole for higher security
– Side ventilation holes for better cooling performance
– Front 120 mm fan provides the best cooling solution
– Removable HDD cage
– Retaining holes for quick and easy customizability
– Micro-ATX motherboards in a compact enclosure
– Extra space for maintenance and airflow after removed the HDD cage
– Front 120mm fan provides the best cooling solution
– Front mesh bazel provides superior ventilation
– Removable HDD cage
– Front I/O panel for easy access

Model

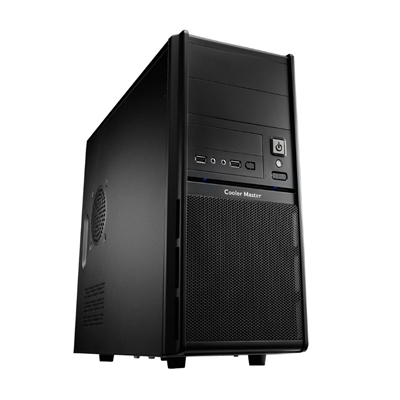

Elite 342: RC-342

Colour
Black

Dimension ( W x H x D )
180 x 352 x 440 mm

Weight
5.1 kg / 11.24 lbs

Materials
Steel Body
ABS plastic
Mesh Front bezel

Form Factor
Micro Tower

Motherboard Support
Micro ATX
Mini-ITX

Drive Bays
5.25″: 2 Exposed
3.5″: 5 Hidden, 1 Exposed

I/O Port
2 x USB 2.0
1 x Spk
1 x Audio

Cooling System
Front: 120 x 25mm fan x 1 / 1200 RPM / 17 dBA (pre-install) ; 80mm / 90mm (optional)
Rear: 80 / 90 mm fan x 1 (optional)
Side: 90 mm fan x 1 (optional)

Expansion Slots
4

Power Supply Type
Standard ATX PS2

Maximum Compatibility
VGA Card Length: 363mm / 14.3 inch
CPU Cooler Height: 153mm / 6.0 inch
