Description

SAVOR THE VIEW

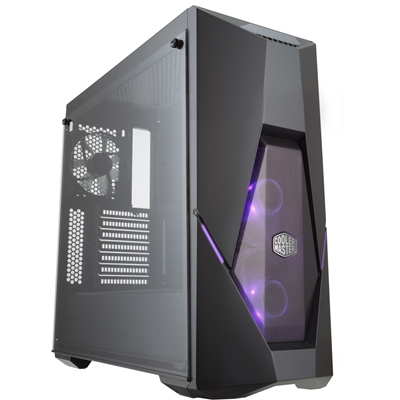

MASTERBOX K500

RGB LIGHTING
Use the RGB lighting to create a captivating build in your preferred colour theme.
– RGB 16.7 Million Colours
– Asus Aura Sync
– MSI Mystic Light Sync
– Gigabyte RGB Fusion Ready
– ASRock Polychrome Sync

EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL
Show off your build in style through the 4mm thick Edge-to-edge tempered glass side panel, and have easy access to your components in case things go haywire.

EXCELLENT THERMAL PERFORMANCE
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.

VERSATILE COOLING OPTIONS
Front: Three 120mm or two 140mm fans and up to a 280mm radiator.
Top: Two 120mm fans.
Rear: One 120mm fan or radiator.
All to ensure you don’t have to compromise on performance.

MAIN COMPONENTS CLEARANCE
The MasterBox K500 supports CPU-Coolers up to a height of 160mm, Graphic Cards up to a length of 400mm, and Power Supplies up to a length of 180mm.
– CPU Cooler Height Maximum of 160mm
– GPU Length Maximum of 400mm
– PSU Length Maximum of 180mm

EXPANDING THE POSSIBILITIES
The spacious interior fits all standard motherboards for your system needs. Let your configuration stand out with an all-black background.

16.7 MILLION POSSIBLE COLOURS

Product Name
MasterBox K500

Model
MCB-K500D-KGNN-S00

Colour
Black

Materials
Steel
Plastic
Tempered Glass

Motherboard Support
ATX
Micro ATX
Mini-ITX

Expansion
Slots: 7

Drive Bays
5.25″ Bays: N/A
3.5″ Bays: 2 (Max. 2)
2.5″ SSD Bays: (Max. 6)

I/O Panel
2 x USB 3.0
Audio In / Out

Cooling
Front: 3 x 120mm (2 x RGB LED fans included) / 2 x 140mm
Top: 2 x 120mm
Rear: 1 x 120mm (1 x black fan included)
Bottom: N/A

Radiator Support
Front: 120 / 140 / 240 / 280mm
Rear: 120mm

Clearances
CPU Cooler: 160mm
PSU: 180mm
GPU: 400mm

Cable Routing
Behind MB Tray: 15-23mm

Dust Filters
Front
Top
Bottom

Power Supply
Bottom mount
ATX

PSU Included
No

Dimensions ( L x W x H )
491 x 210 x 455mm
