Description

PLAY IT COOL.

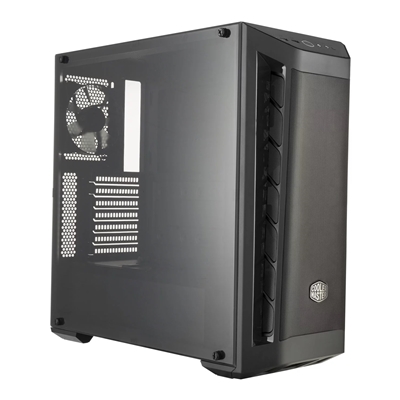

MASTERBOX MB511
– Mesh Front Panel
– Aggressive Intakes
– Edge-To-Edge Transparent Side Panel
– Support for a Total of 6 Fans and Water Cooling
– Graphics Card Support Up to 400mm
– Multiple Trim Colours Available

MESH FRONT PANEL
The fine mesh front panel filters dust while offering efficient airflow for demanding systems.

AGGRESSIVE INTAKES
Large intakes on each side of the front panel pay tribute to high performance cars. Four trim colours available*. (Red, Blue, White and Black)
*This model is black

EXCELLENT THERMAL PERFORMANCE
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.

FAN AND RADIATOR SUPPORT
Front: Three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you don’t have to compromise on performance.

EDGE-TO-EDGE TRANSPARENT SIDE PANEL
Showcase your build through the transparent side panel.

EXPANDING THE POSSIBILITIES
The spacious interior fits all standard motherboards for your gaming needs.

MAIN COMPONENTS CLEARANCE
The MB511 case supports CPU Coolers up to a height of 165mm, Graphic cards up to a length of 410mm and Power Supplies up to a length of 180mm.
– CPU Cooler Height Maximum of 165mm
– GFX Length Maximum of 410mm
– PSU Length of 180mm

Product Name
MasterBox MB511

Model
MCB-B511D-KANN-S01 (Black)

Colour
Black Body with Black Trim

Materials
Steel
Plastic

Motherboard Support
ATX (up to 272mm width)
Micro ATX
Mini-ITX

Expansion
Slots: 7

Drive Bays
5.25″ Bays: None
Combo 3.5″/2.5″ Bays 2 (Max. 2)
SSD Bays: 5 (Max. 6)

I/O Panel
2 x USB 3.0
Audio In / Out

Cooling
Front: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm (Installed)
Top: 2 x 120mm / 2 x 140mm

Liquid Cooling Support
Front: 120 / 140 / 240 / 280 / 360mm Radiator (75mm clearance)
Top: 120 / 240mm
Rear: 120mm

Clearances
CPU Cooler: 165mm
PSU: 180mm
GFX: 410mm

Cable Routing
Behind MB Tray: 19mm

Dust Filters
Front
Top
Bottom

Power Supply Support
Bottom mount
ATX

Power Supply Included
No

Dimensions ( L x W x H )
496 x 217 x 469 mm
