Description

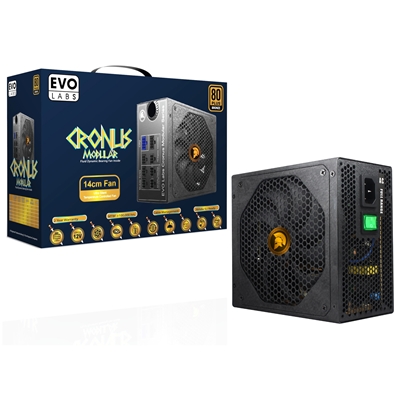

NEW CRONUS SEMI MODULAR PSU RANGE
2013 saw the launch of the original Cronus Semi Modular PSUs, which contained an ultra silent, ‘Fluid Dynamic Bearing’ (FDB) fan as its major cooling component.
The New Cronus Semi Modular PSU Range also offers a Brand New Black FDB fan, which offer better airflow allowing for better ventilation. On average a FDB fan has a lifespan of approx. 100,000 hours, whilst staying virtually silent for more than 2 years.
The New Cronus Semi Modular has been awarded the 80 PLUS Bronze Certificate accross the range, and is also ERP Lot6 Ready (+5Vsb consumption <1W).
The single +12V rail allows greater stability to your PC, whilst powering the ever increasing power needs of todays high end graphics cards.
The modular cable design allows for greater flexibility and cable management, due to the ability for the use of only the cables you require being connected to the components, which increases airflow around your PC.
Key Features
– Brand new design and decals
– Updated packaging layout
– 80 PLUS Bronze Certified
– NEW 140mm Ultra Silent Intelligent Temperature Controlled FDB Fan
– Compliant with the newest Intel standard ATX 12V, V2.2, v2.91.
– MTFB > 100,000 Hours
– Up to 85% efficiency (typical)
– Double EMI Filter for electromagnetic protection
– NVIDIA SLI Ready
– Smart Modularized Cable Management for better airflow
– Modular Cable Management reduces cable clutter and increases heat removal
– OVP, UVP, OPP, OTP & SCP Protection
– Stand-by model consumption < 1W meet USA Energy Standards/EuP (Energy-using Protection) instruction
– SINGLE +12V Support High End VGA Cards
– 2 Year Warranty
Model
Cronus Modular Series
Model Number
E-CR750M
Form Factor
ATX
Wattage
750W
Cooling
140mm Fluid Dynamic Bearing (FDB) Black Fan
with Intelligent Fan Control (800RPM – 1500RPM)
Connections
1 x 20+4 pin ATX
1 x 4+4 pin +12V
4 x 6+2 pin PCI-E
9 x SATA
5 x 4 pin Molex
1 x FDD
SLI Ready
NVIDIA SLI Ready
Modular
Semi Modular
Certification
80 PLUS Bronze Certified
Efficiency
Up to 85% (typical)
Input Characteristics
Vac~Input
Voltage: 115V
Current: 13/6.5A
Frequency: 60/50Hz
Output Characteristics
Vdc Max. DC Output
+3.3V: 25A
+5V: 25A
+12V: 60A
-12V: 0.8A
+5VSB: 3A
Total Output Power: 750W Max. Output
PFC: APFC
Protection
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Over Temperature Protection (OTP)
Short Circuit Protection (SCP)
MTFB
>100,000 Hours
Package Dimensions ( W x H x D )
338 x 243 x 119 mm
Package Weight
2.6kg
Box Quantities
5 units per box
