Description

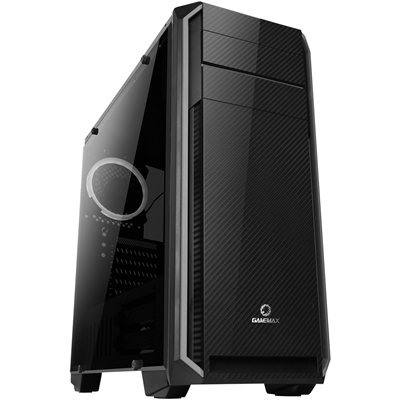

Brand new for 2018 Game Max have introduced the Game Max Carbon it is an Mid Tower gaming case and is made with a very simple and classic design. It comes with a front spline design and an attractive acrylic side panel on the left side. It has HD Audio, 2 x USB 2.0 and 1 x USB 3.0 included on the top panel for easy access.

There is room for 3 fans to be fitted but the Carbon comes with 1 x 120mm Single-Ring white LED fan at the back which makes this an ideal solution for the gaming enthusiast and an excellent cooling solution to help to keep the computer temperature low.

In line with the Game Max ethos this case offers style, performance and the ultimate experience.

Key Features
– Design: The Carbon is a premium midi Tower case it comes with a front spline design and has a vent hole design.
– Water-Cooling Support: The Carbon can fit 1 x 120 / 240 / 360mm radiator at the front, 1 x 120 and 1 x 120mm radiator at the back to give the user extensive water cooling support.
– Acrylic Side panel: The Carbon comes with an Acrylic left side panel to allow the user to show off their internal components and also makes the carbon more durable and stronger.
– Fans: The Carbon can fit up to 3 fans in total to give you the ultimate cooling experience but it comes with 1 x 120mm Single-Ring white LED fan at the back to give your case a unique look.
– I/O Ports: The Caron comes with HD Audio, 2 x USB 2.0 and 1 x USB 3.0 to allow you to connect to most media storage devices.

Form Factor
Mid Tower

Motherboard Support
ATX
Micro ATX
Mini-ITX

PSU Support
Standard ATX

PSU Location
Bottom

PSU Included
No

Water Cooling Ready
Yes

Supported Radiator Size
360mm

Supported Radiator Positions
Front
Top

Material
Body: 0.5mm SPCC
Front Bezel: ABS + Mesh

Side Panel
Acrylic Window

Drive Bays
External: 1 x 5.25″
Internal: 2 x 3.5″ / 4 x 2.5″
Drive Bay Notes: 2 x 2.5″ bays uses 3.5″ bays

Expansion
Slots: 7 x Full Size

Cooling
Front: Space For 2 x 120mm Fans
Top: None
Rear: Space for 1 x 120mm (1 x 120mm Single-Ring White LED Fan inc.)
Side: None
Bottom: Filtered PSU Vent & Additional HDD vent

IO Ports
1 x USB 3.0
2 x USB 2.0

Clearence
GPU Max Length: 390mm
CPU Cooler Maximum Height: 162mm

Colour
Front Bezel: Black / Grey
Body: Black

What’s in the Box
Case
Screws

Unit Dimensions ( W x H x D )
208 x 465 x 445mm

Packaging Dimensions ( W x H x D )
272 x 515 x 510mm

Weight
Net: 4.3 KGs
Gross: 5.2 KGs
