Description
ECLIPSE P300
The cases of the Eclipse P300 series are directed towards beginners while also offering interesting features for experienced PC enthusiasts. With an RGB-LED power button as well as an LED strip on the left side, the Dutch manufacturer offer a range of colourful highlights as you would expect! The unique feature of the Eclipse P300 is without doubt the modern side panel in tempered- as well as tinted glass, which offers you a breathtaking view of the installed hardware and an all-round premium appearance.
Model Number
PH-EC300PTG_BK

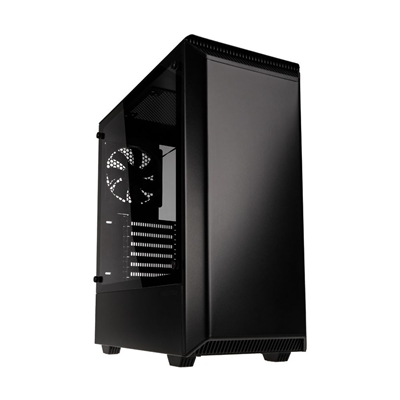

Phanteks Eclipse P300 Glass Midi Tower Case – Black
Dimensions ( W x H x D )
200 x 450 x 400 mm
Form Factor
Midtower
Materials
Steel,
Plastic,
Tempered Glass
Motherboard Support
ATX
Micro ATX
Mini-ITX
Front I/O
2 x USB 3.0.
Mic
Headphone
Reset
Side Window
Yes
Expansion & Drive Bays
Expansion Slots: 7
Internal 3.5″: 2
Internal 2.5″: 2 Replaces 3.5″
Cooling
Total Possible Fans:
2x 140 / 2x 120 mm (Front)
1x 140 / 120 mm (Top)
1x 120 mm (Rear)
Pre-Installed Fans:
1x 120 mm (Rear)
Radiator Mountings (may partly occlude HDD and/or fan slots):
1x max. 240/280 mm (Front)
1x max. 120 mm (Rear)
Filter: Front, PSU, Roof (removable)
Liquid Cooling
Front: 120mm Radiator / 140mm Radiator (up to 280)
Rear: 120
Clearence
Maximum GPU Length: 330 mm
Maximum CPU Cooler Height: 160 mm
Maximum PSU Length: 197 mm
Weight
Net Weight: 7 kg
Gross Weight: 8 kg
Colour
Satin Black
Accessories
N/A
