Description

What It Does

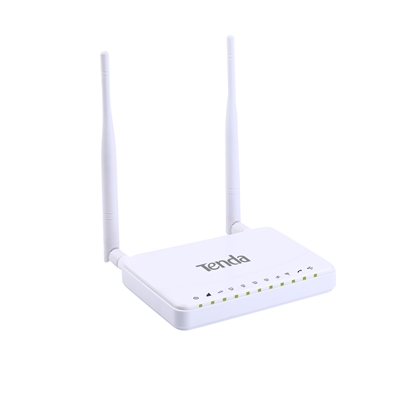

Tenda 4G680 Provides 4G LTE Mobile WAN and wired WAN connection to let you surf the internet easily.By simply plug a mobile operator’s SIM card,you can shared with multiple users or multiple devices and enjoy fast 4G speed. Use 4G LTE as primary connection while wired connection as backup connection,the device automatically fails over to wired connection when 4G signal is lost.and fail back when it resumes.in a word,it will let you always on Internet and enjoy the lately and fast mobile internet.it provide voice service base on VoLTE or CSFB also.It offers Wireless N speeds of up to 300Mbps.This router is perfect for locations where 4G LTE speeds are faster than cable broadband or ADSL is inconvenient. It provides High speed Wi-Fi service and Voice service to you steadily.

Main Features
– Share with your Fast 4G LTE Speed Up to 150 Mbps,It supports FDD LTE,TDD LTE,WCDMA,GSM.
– 300Mbps Wireless speed for reliable Wi-Fi connections.
– Support external Landline phone via VoLTE,make calls anytime anywhere.
– Plug SIM card and surf internet without configuration.
– Smart connection between wired WAN connection and 4G LTE WAN connection.

Fast 4G LTE Networking
Supporting the latest generation 4G LTE Andvanced network, the 4G680 can reach up to 150Mbps download speeds and 50Mbps upload speeds

300Mbps Wireless Speed
The wireless speed ideal for enjoying HD viedo streaming without interruption, download movies or files quickly, and uplink the photo and files without dropouts.

Voice Service via VoLTE
Support extenal Landline phone via VoLTE,make calls anytime anywhere;This is the best choice for locations where 4G LTE speeds are faster than cable broadband or ADSL is inconvenient.

Secure 4G and Wi-Fi Connections
WPA/WPA2 wireless encryption keeps your wireless network secure and your traffic safe, PAP and CHAP encryption allowing you to securely share your 4G LTE or 3G connections without worrying about unauthorised users accessing your network.

Specifications

Dimensions
142mm*98mm*20mm（L*W*H）

Weight
530 g

Mobile Communication Support
FDD-LTE: Band1/Band3/Band5/Band7/Band8/Band20/B28
TDD-LTE:Band38/Band40/Band41
WCDMA:Band1/Band8
GSM:Band2/Band3/Band5/Band8

Speed Rate
FDD-LTE DL/UL 150Mbps/50Mbps
DC-HSPA+ DL/UL 43.2 Mbps/5.76 Mbps

Power Supply
Input:110V-220V AC
DC:12V/1A

External Ports
Two External port
2FF SIM slot
WPS
Reset

Wireless Standard
802.11 b/g/n

Basic Functionality
Client Filter
SSID,Broadcast
Channel

Wireless Security
WPA-PSK/WPA2-PSK
WPA/WPA2
WEP

Internet Connection Type
FDD LTE/TDD LTE/UMTS/WCDMA/GSM

OS Support
Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X 10.5, 10.6, 10.7 and 10.8 with latest upgrades

Packaging Content
4G188 device
RJ45 Cable
Quick Install Guide
Two antennas
Power supply 12v/1A
