Description

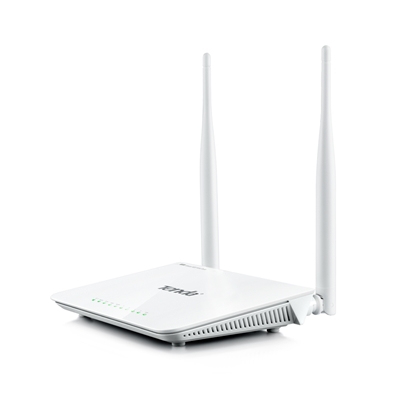

The F300 provides 300Mbps wireless n speed to share files, play games, and stream video wirelessly. The home network is protected with advanced wireless encryption WPA2, unauthorized users is forbid to connect wireless network.Otherwise,the WISP function enables wireless access to the Internet in areas with no wired ISP infrastructure,you will enjoy a wonderful wireless life.
- Hardware Features
Compliant Standard
IEEE 802.3/3U IEEE 802.11n/g/b
Wired Interface
1 10/100Mbps WAN Port
4 10/100Mbps LAN Ports
Antenna
2 fixed 5dbi Omni Directional antennas
Button
1 Reset/WPS Button
Dimensions (L*W*H)mm
172mm*111mm*25mm
Wireless Features
Frequency Range (GHz)
2.412GHz-2.472GHz
Wireless Link Rate
IEEE 802.11n: up to 300Mbps
IEEE 802.11g: up to 54Mbps
IEEE 802.11b: up to 11Mbps
Wireless Security
64/128bit WEP
WPA-PSK
WPA2-PSK
WPS support
Working Mode
AP
WISP
WDS Bridge
Wireless Function
Enable/Disable Wireless Radio
Wireless Access Control
Reception Sensitivity
b mode 1M -92dBm@8% 11M -87dBm@8% PER;
g mode 54M -72dBm@8% PER;
n mode 72.2M -68dBm@8% PER; 150M -68dBm@8% PER;
Software Features
Internet Connection Type
Dynamic IP; PPPOE; Static IP; L2TP; PPTP
DHCP
Built-in DHCP server
DHCP Client List
Address Reservation
Virtual Server
Port Forwarding
DMZ Host
Security Settings
Client Filter
Mac Filter
Websites Filter
Dynamic DNS
No-IP
dyndns
VPN Pass-Through
PPTP
L2TP
Other Advanced Functions
Bandwidth Control
Mac Address Clone
Remote Web Management
System Log
Package Contents
Wireless N300 Home Router F300
Quick Installation Guide
Ethernet cable
Power adapter
Resources CD
Environment
Operating Temperature: 0C~40C
Storage Temperature: -40C~70C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certificates
FCC, CE,Rohs
