Description

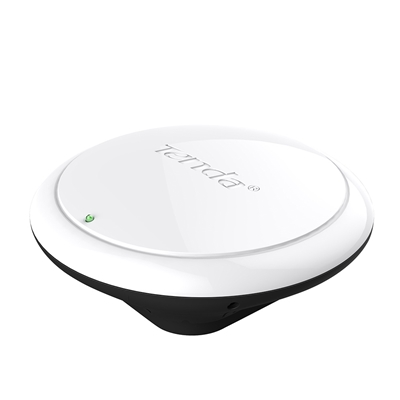

The Tenda i12 is an 802.11n compliant Wireless N300 Ceiling-mount PoE Access Point. It is designed to establish or expand a high speed wireless N network to connect multiple WiFi-enabled devices such as game consoles, Digital Media Adapters, Printers, or Network Attached Storage devices to an existing wireless network. Integrated with PoE technology, it delivers both data and electrical power over a single Ethernet cable, providing a compact solution that fits nicely into a situation where electrical outlet is unavailable or hard to reach for specific areas It delivers incredibly high wireless performance-8x the speed and 6x the range of wireless G, guaranteeing multiple users more freedom to enjoy a great wireless Internet experience in the home, office, cafe or even a hotel or airport. W301A is an ideal choice for hotel, enterprise, school to extend wireless coverage with exquisite design, wireless transmission distance, and fast speed.
- Interface
1*GE port
Antenna
Internal 2* 2dBi Omni
Maximum Power Consumption
11W
LED
SYS
Standard&Protocol
IEEE 802.11n/g/b
Frequency Range
2.4GHz
Transmit Power
Adjustable power by 1dBm
Power Supply
802.3at PoE/DC 12V=1A
Operating Mode
AP/Client+AP/Repeater
Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
DHCP Server
DHCP Server;Clients list
Schedule Reboot
Support
Page Timeout
Support
Network Diagnoses
Ping,Channel Scan
Management Tool
Time&Date Setting;
System Log;
Firmware update;
Backup/Restore Configuration;
Username Managerment
Default Settings
IP Address: 192.168.0.254
Login Username: admin
Login Password: admin
Maximum wireless speed
300Mbps
Maximum Concurrent Clients
40
Features
Enable/Disable Wireless Radio;
SSID Hidden;
Wireless Client isolation;
Sensitivity Threshold;
WMM Capable;
Wireless Multicast Forwarding;
APSD Capable;
Wireless Access Control;
SSID-To-VLAN tagging
Dimension
144.2*144.2*40.12mm
Package Content
Wireless N300 Access Point i12;
1*Mounting Bracket;
1*Quick Installation Guide:
1*Ethernet cable;
1*Power Adapter;
4*Screws;
4*Plastic Bolt
Temperature
Operating Temperature: -10c ~ +45c;
Storage Temperature: -30c ~ +70c
Humidity
10%~90% non-condensing;
10%~90% non-condensing
Certification
FCC/CE/RoHS
