Description

Redwing Series

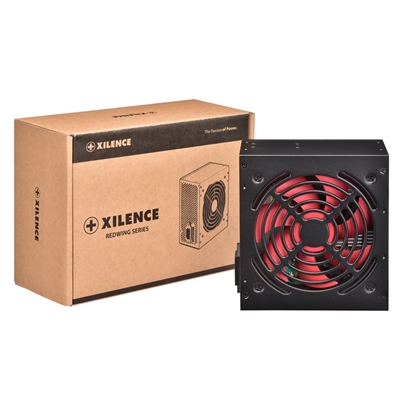

XP500R7 / XN052

The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today’s computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation.

Key Features
– Powerful: Optimal performance in every situation
– Whisper-Silent Cooling: 1 x 120mm fan
– Reliable: Maximum stability at all time
– The following safety features: OVP/UVP/SCP/OLP

Model Number
XN052

Wattage
500W

Form Factor
ATX 2.3

PFC
Passive

Power Switch
Yes

Cooling
120mm Red Silent Fan

Input Voltage
200 – 240V

Output
+3.3V: 22.0 A
+5V: 15.0 A
+12V1: 32.0 A
-12V: 0.5 A
+5VSB: 2.5 A

Connectors
1 x 20+4 pin ATX-Motherboard
1 x 4 pin CPU
1 x 6 pin PCI-E
2 x 4 pin Molex
4 x 15 pin SATA

Packaging
OEM system builder brown box
UK Plug shipped but not inside OEM box

Packaging Dimensions ( W x H x D )
165 x 100 x 230 mm

Bulk Quantities
10 units per box

Weight
Gross: 1.63 kg
